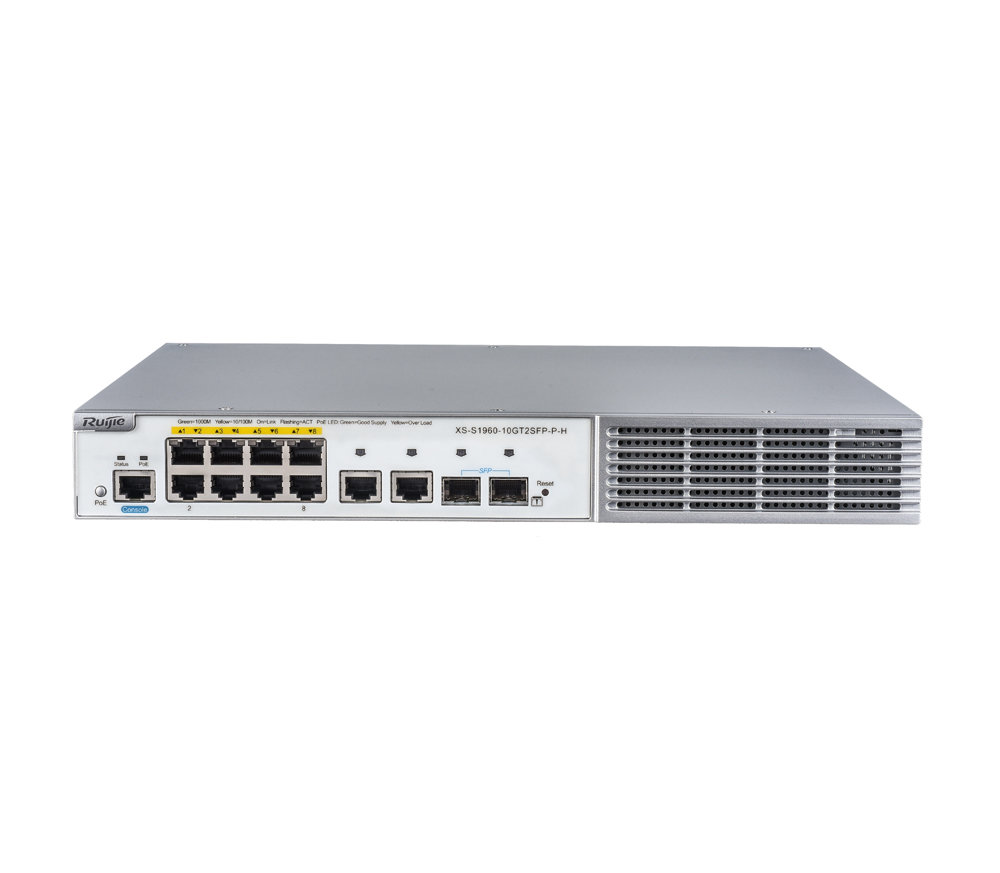

Ruijie XS S1960-10GT2SFP-P-H
|
Product Model
|
XS-S1960-10GT2SFP-P-H
|
XS-S1960-24GT4SFP-H
|
XS-S1960-24GT4SFP-UP-H
|
XS-S1960-48GT4SFP-H
|
|
|
Product Model
|
XS-S1960-10GT2SFP-P-H
|
XS-S1960-24GT4SFP-H
|
XS-S1960-24GT4SFP-UP-H
|
XS-S1960-48GT4SFP-H
|
|
|
Ports
|
10/100/1000BASE-T
|
10
|
24
|
24
|
48
|
|
1000M SFP
|
2
|
4
|
4
|
4
|
|
|
Power over Ethernet
|
PoE
|
✓
|
n/a
|
✓
|
n/a
|
|
PoE/PoE+ |
8
|
/
|
24
|
n/a
|
|
|
H-PoE Enabled Ports
|
n/a
|
n/a
|
4
|
n/a
|
|
|
IEEE802.3bt |
n/a
|
n/a
|
✓
|
n/a
|
|
|
IEEE802.3af |
✓
|
n/a
|
✓
|
n/a
|
|
|
IEEE802.3at |
✓
|
n/a
|
✓
|
n/a
|
|
|
PoE Power Budget
|
125W
|
n/a
|
370W
|
n/a
|
|
|
Physical
|
Packet Buffer
|
12Mbit
|
12Mbit
|
12Mbit
|
12Mbit
|
|
CPU Memory
|
512MB
|
512MB
|
512MB
|
512MB
|
|
|
Flash
|
256MB
|
256MB
|
256MB
|
256MB
|
|
|
Dimensions(WxDxH)
|
340x260x43.6mm
|
440x260x43.6mm
|
440x260x43.6mm
|
440x260x43.6mm
|
|
|
Unit Weight
|
2.5kg
|
3.5kg
|
5.5kg
|
4kg
|
|
|
Power Supply
|
Type
|
Internal
|
Internal
|
Internal
|
Internal
|
|
Frequency
|
50/60Hz
|
||||
|
AC Voltage
|
100~240V
|
||||
|
AC Current
|
2A
|
0.6A
|
6.8A
|
1.5A
|
|
|
Rated HVDC voltage
|
240V DC
|
||||
|
Maximum HVDC voltage
|
192~290V DC
|
||||
|
Maximum Power Rating
|
165W
|
24W
|
460W
|
40W
|
|
|
Cooling
|
Fanless
|
Fanless
|
Fan
|
Fan
|
|
|
Certifications
|
Safety
|
EN 60950-1
|
|||
|
EMC
|
EN 300 386
|
||||
|
Emissions
|
EN 55032
|
||||
|
Immunity Generic
|
EN 55024
|
||||
|
ESD
|
EN 61000-4-2
|
||||
|
Radiated
|
EN 61000-4-3
|
||||
|
EFT/Burst
|
EN 61000-4-4
|
||||
|
Surge
|
EN 61000-4-5
|
||||
|
Conducted
|
EN 61000-4-6
|
||||
|
Power frequency magnetic field
|
EN 61000-4-8
|
||||
|
Voltage dips and interruptions
|
EN 61000-4-11
|
||||
|
Harmonics
|
EN 61000-3-2
|
||||
|
Flicker
|
EN 61000-3-3
|
||||
|
RoHS
|
✓
|
✓
|
✓
|
✓
|
|
|
EEE
|
✓
|
✓
|
✓
|
✓
|
|
|
Operating Temperature
|
0 ℃ ~ 45 ℃
|
||||
|
Storage Temperature
|
-40 ℃ ~ 70 ℃
|
||||
|
Operating Humidity
|
10%~90% RH
|
||||
|
Storage Humidity
|
5%~95% RH
|
||||
|
Operating Altitude
|
-50m ~ 5000m
|
||||
|
MTBF(hours)
|
590278
|
602365
|
361712
|
524960
|
|
|
Warranty
|
3-Year Warranty Free of Charge
|
||||
|
Package Contents
|
Ruijie XS-S1960-H Series Switch |
||||
|
Performance
|
Switching Capacity
|
24Gbps
|
56Gbps
|
56Gbps
|
104Gbps
|
|
Forwarding Rate
|
18Mpps
|
42Mpps
|
42Mpps
|
78Mpps
|
|
|
ARP Table Size
|
500
|
1K
|
1K
|
1K
|
|
|
MAC Table Size
|
16K
|
16K
|
16K
|
16K
|
|
|
L2 Switching
|
STP
|
✓
|
|||
|
RSTP
|
✓
|
||||
|
MSTP
|
✓(64 instances)
|
||||
|
Port Grouping
|
✓(LACP)
|
||||
|
VLAN
|
✓(IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN)
|
||||
|
GVRP
|
✓
|
||||
|
IGMP Snooping
|
✓((v1/v2/v3)/SGVL/IVGL/IGMP filter/IGMP fast leave)
|
||||
|
Jumbo Frame
|
9KB
|
||||
|
QinQ
|
✓
|
||||
|
G.8032/ERPS
|
✓
|
||||
|
L3
|
IPv4 Routing
|
Static/RIP/OSPFv1/v2/VRRP
|
|||
|
IPv6 Routing
|
Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+
|
||||
|
Ping
|
✓ (IPv4 and IPv6)
|
||||
|
Traceroute
|
✓ (IPv4 and IPv6)
|
||||
|
DHCP
|
✓ (Server/Client/Relay)
|
||||
|
ARP Features
|
✓(ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check/)
|
||||
|
Reliability
|
VSU
|
n/a
|
✓ (up to 4 members)
|
||
|
GR
|
✓
|
||||
|
REUP
|
✓
|
||||
|
RLDP
|
✓
|
||||
|
DLDP
|
✓
|
||||
|
Security
|
CPP
|
✓
|
|||
|
NFPP
|
✓
|
||||
|
SSH
|
✓
|
||||
|
SSL
|
✓
|
||||
|
IEEE802.1X
|
✓
|
||||
|
Port Security
|
✓
|
||||
|
Radius
|
✓
|
||||
|
TACACS+
|
✓
|
||||
|
DAI
|
✓
|
||||
|
IP-MAC Binding
|
✓
|
||||
|
ACL
|
✓ (IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port)
|
||||
|
IP Source Guard
|
✓ (IPv4 and IPv6)
|
||||
|
DHCP Snooping
|
✓ (IPv4 and IPv6)
|
||||
|
QoS
|
Stream classification
|
✓ (Classification based on IEEE802.1p/DSCP/TOS)
|
|||
|
Shaping
|
✓ (Rate-limit on ingress/egress traffic on interface)
|
||||
|
Congestion avoidance
|
✓ (RED, WRED, Tail drop)
|
||||
|
Congestion management
|
✓(SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port)
|
||||
|
Management
|
Web User Interface
|
✓
|
|||
|
HTTP/HTTPS
|
✓
|
||||
|
Ruijie Cloud Management
|
✓
|
||||
|
RG-SNC Management
|
✓
|
||||
|
Command Line Interface
|
Telnet/Console
|
||||
|
SNMP
|
✓
|
||||
|
Smart+ for CCTV
|
✓(Auto Smart Deployment/Remote Reboot Helper)
|
||||
|
SYSLOG
|
✓
|
||||
|
NTP
|
✓
|
||||
|
DNS
|
✓
|
||||
|
SPAN
|
✓
|
||||
|
RSPAN
|
✓
|
||||
|
ERSPAN
|
✓
|
||||
|
Public MIBs
|
✓
|
||||
|
Private MIBs
|
✓
|
||||
|
RMON
|
✓(1/2/3/9)
|
||||
|
sFlow
|
✓
|
||||
|
Firmware Upgrade
|
✓
|
||||
|
Port Mirroring
|
✓
|
||||
