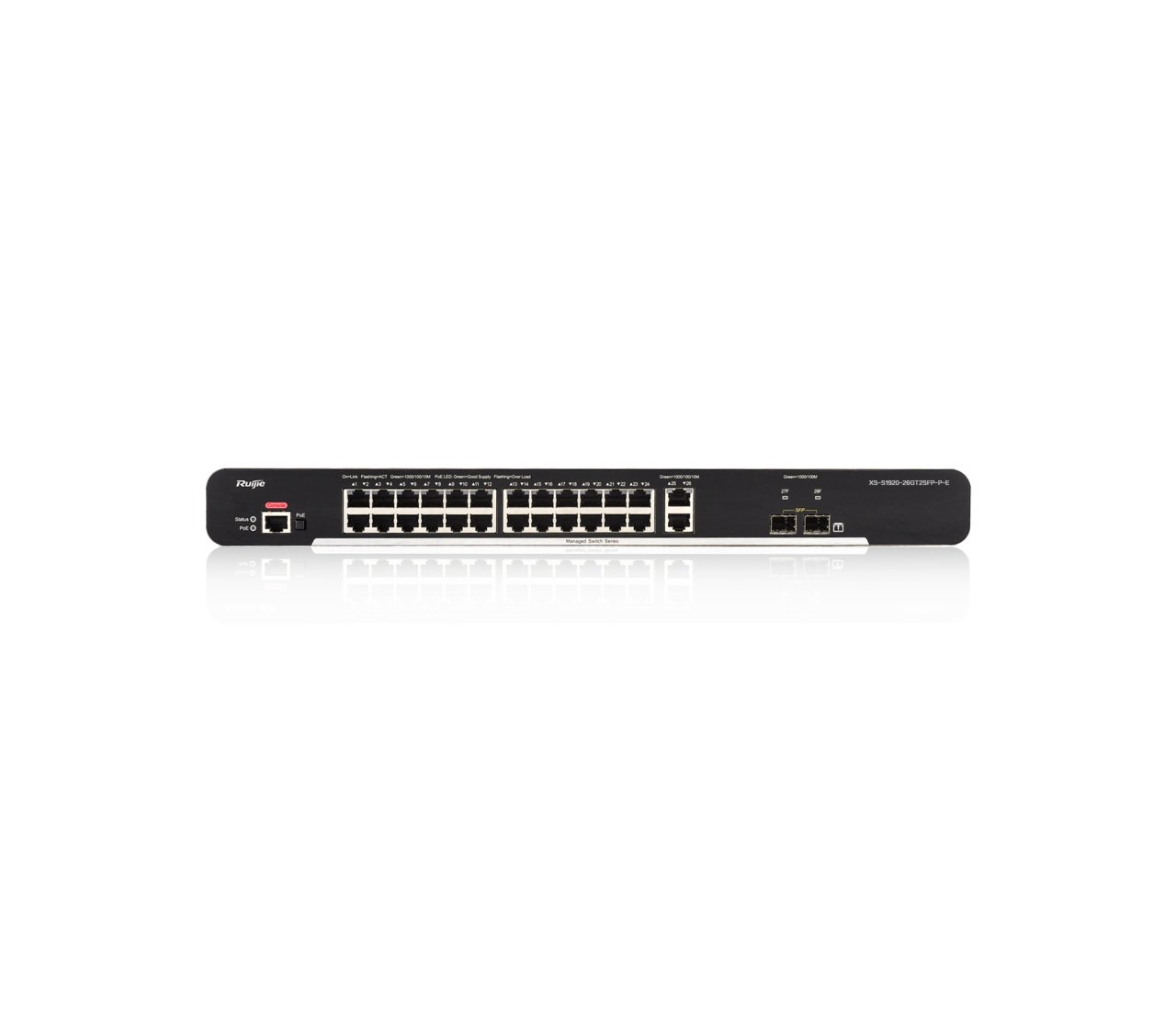

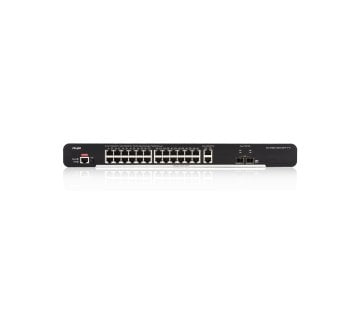

Ruijie XS S1920-26GT2SFP-P-E 24 Port GB PoE
|
Product Model |
XS-S1920-9GT1SFP-P-E |
XS-S1920-26GT2SFP-P-E |
XS-S1920-26GT2SFP-LP-E |
XS-S1920-24T2GT2SFP-P-E |
XS-S1920-24T2GT2SFP-LP-E |
RG-S1920-18GT2SFP |
RG-S1920-24GT4SFP/2GT |
|
|
Ports |
10/100BASE-T |
n/a |
n/a |
n/a |
24 |
24 |
n/a |
n/a |
|
10/100/1000BASE-T |
9 |
26 |
26 |
2 |
2 |
18 |
26 |
|
|
1000M SFP |
1 |
2 |
2 |
2 |
2 |
2 |
4 (with 2 combo) |
|
|
Power over Ethernet |
PoE |
✓ |
✓ |
✓ |
✓ |
✓ |
n/a |
n/a |
|
PoE/PoE+ |
8 |
24 |
24 |
24 |
24 |
n/a |
n/a |
|
|
IEEE802.3af |
✓ |
✓ |
✓ |
✓ |
✓ |
n/a |
n/a |
|
|
IEEE802.3at |
✓ |
✓ |
✓ |
✓ |
✓ |
n/a |
n/a |
|
|
PoE Power Budget |
125W |
370W |
185W |
370W |
185W |
n/a |
n/a |
|
|
Physical |
Packet Buffer |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
|
CPU Memory |
256MB |
256MB |
256MB |
256MB |
256MB |
256MB |
256MB |
|
|
Flash |
32MB |
32MB |
32MB |
32MB |
32MB |
32MB |
32MB |
|
|
Dimensions(WxDxH) |
300x220x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
440x189x43.6mm |
440x189x43.6mm |
|
|
Surge Protection |
8KV |
8KV |
8KV |
8KV |
8KV |
10KV |
10KV |
|
|
Unit Weight |
2kg |
4.2kg |
4.2kg |
4.2kg |
4.2kg |
2.4kg |
2.4kg |
|
|
Power Supply |
Type |
Internal |
Internal |
Internal |
Internal |
Internal |
Internal |
Internal |
|
Frequency |
50/60Hz |
|||||||
|
AC Voltage |
100~240V |
|||||||
|
Maximum Power Rating |
145W |
430W |
226W |
424W |
215W |
17W |
22W |
|
|
Cooling |
Fanless |
Fan |
Fan |
Fan |
Fan |
Fanless |
Fanless |
|
|
Certifications |
Safety |
EN 60950-1 |
EN 62368- 1 |
|||||
|
EMC |
EN 300 386 |
|||||||
|
Emissions |
EN 55032, EN55035 |
|||||||
|
ESD |
EN 61000-4-2 |
|||||||
|
Radiated |
EN 61000-4-3 |
|||||||
|
EFT/Burst |
EN 61000-4-4 |
|||||||
|
Surge |
EN 61000-4-5 |
|||||||
|
Conducted |
EN 61000-4-6 |
|||||||
|
Power frequency magnetic field |
EN 61000-4-8 |
|||||||
|
Voltage dips and interruptions |
EN 61000-4-11 |
|||||||
|
Harmonics |
EN 61000-3-2 |
|||||||
|
Flicker |
EN 61000-3-3 |
|||||||
|
RoHS |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
EEE |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
Operating Temperature |
-5 ℃ ~ 55 ℃ |
|||||||
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|||||||
|
Opertaing Humidity |
10%~90% RH |
|||||||
|
Storage Humidity |
5%~95% RH |
|||||||
|
Operating Altitude |
-50m ~ 5000m |
|||||||
|
Warranty |
3-Year Warranty Free of Charge |
|||||||
|
Package Contents |
Ruijie XS-S1920-E/RG-S1920 Series Switch |
|||||||
|
Performance |
Switching Capacity |
20Gbps |
56Gbps |
56Gbps |
12.8Gbps |
12.8Gbps |
40Gbps |
56Gbps |
|
Forwarding Rate |
15Mpps |
42Mpps |
42Mpps |
9.6Mpps |
9.6Mpps |
30Mpps |
42Mpps |
|
|
L2 Switching |
MAC Table Size |
8K |
8K |
8K |
8K |
8K |
8K |
8K |
|
STP |
✓ |
|||||||
|
RSTP |
✓ |
|||||||
|
MSTP |
✓(63 instances) |
|||||||
|
Port Grouping |
LACP |
|||||||
|
VLAN |
IEEE802.1Q |
|||||||
|
GVRP |
✓ |
|||||||
|
IGMP Snooping |
✓(v1/v2/v3) |
|||||||
|
Jumbo Frame |
9KB |
|||||||
|
L3 |
IPv4 Routing |
Static/RIP (in future release) |
||||||
|
IPv6 Routing |
Static/RIPng (in future release) |
|||||||
|
DHCP Client |
✓ |
|||||||
|
Security |
CPP |
✓ |
||||||
|
SSH |
✓ |
|||||||
|
SSL |
✓ |
|||||||
|
Storm Suppression |
✓ |
|||||||
|
Port Protection |
✓ |
|||||||
|
ACL |
✓ |
|||||||
|
Reliability |
RLDP |
✓ |
||||||
|
DLDP |
✓ |
|||||||
|
Management |
Web User Interface |
✓ |
||||||
|
HTTP/HTTPS |
✓ |
|||||||
|
Ruijie Cloud Management |
✓ |
|||||||
|
RG-SNC Management |
✓ |
|||||||
|
Command Line Interface |
✓(Telnet/Console) |
|||||||
|
SNMP |
✓ |
|||||||
|
Smart+ for CCTV |
✓(Auto Smart Deployment/Remote Reboot Helper) |
n/a |
||||||
|
SYSLOG |
✓ |
|||||||
|
NTP |
✓ |
|||||||
|
Public MIBs |
✓ |
|||||||
|
Private MIBs |
✓ |
|||||||
|
RMON |
✓(1/2/3/9) |
|||||||
|
Firmware Upgrade |
✓ |
|||||||
|
Port Mirroring |
✓ |
|||||||
