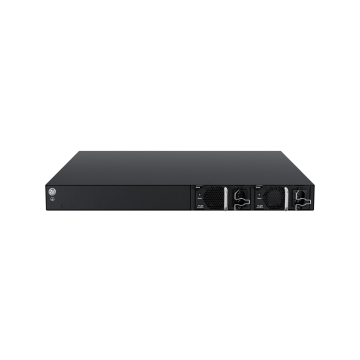

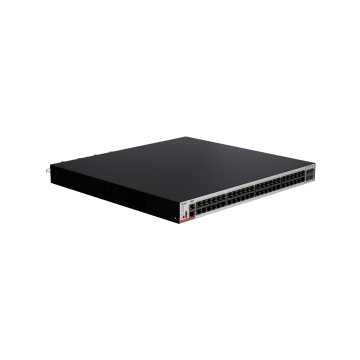

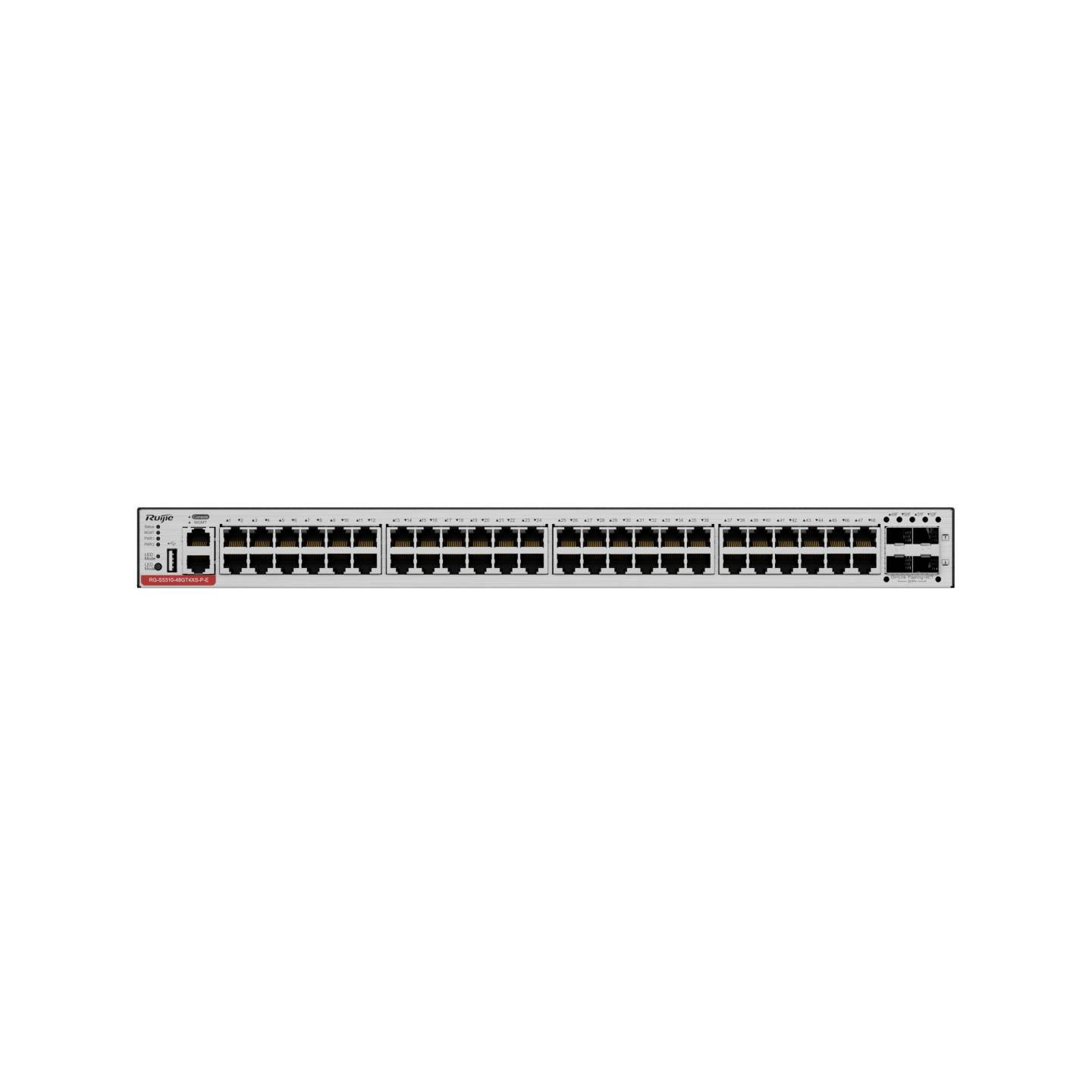

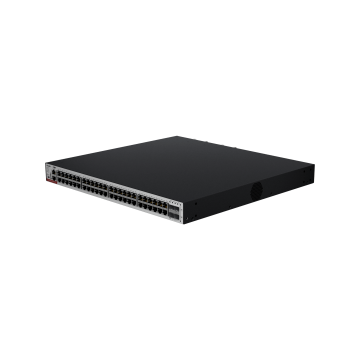

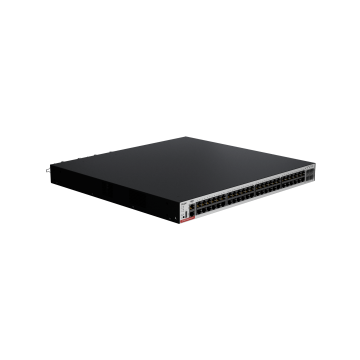

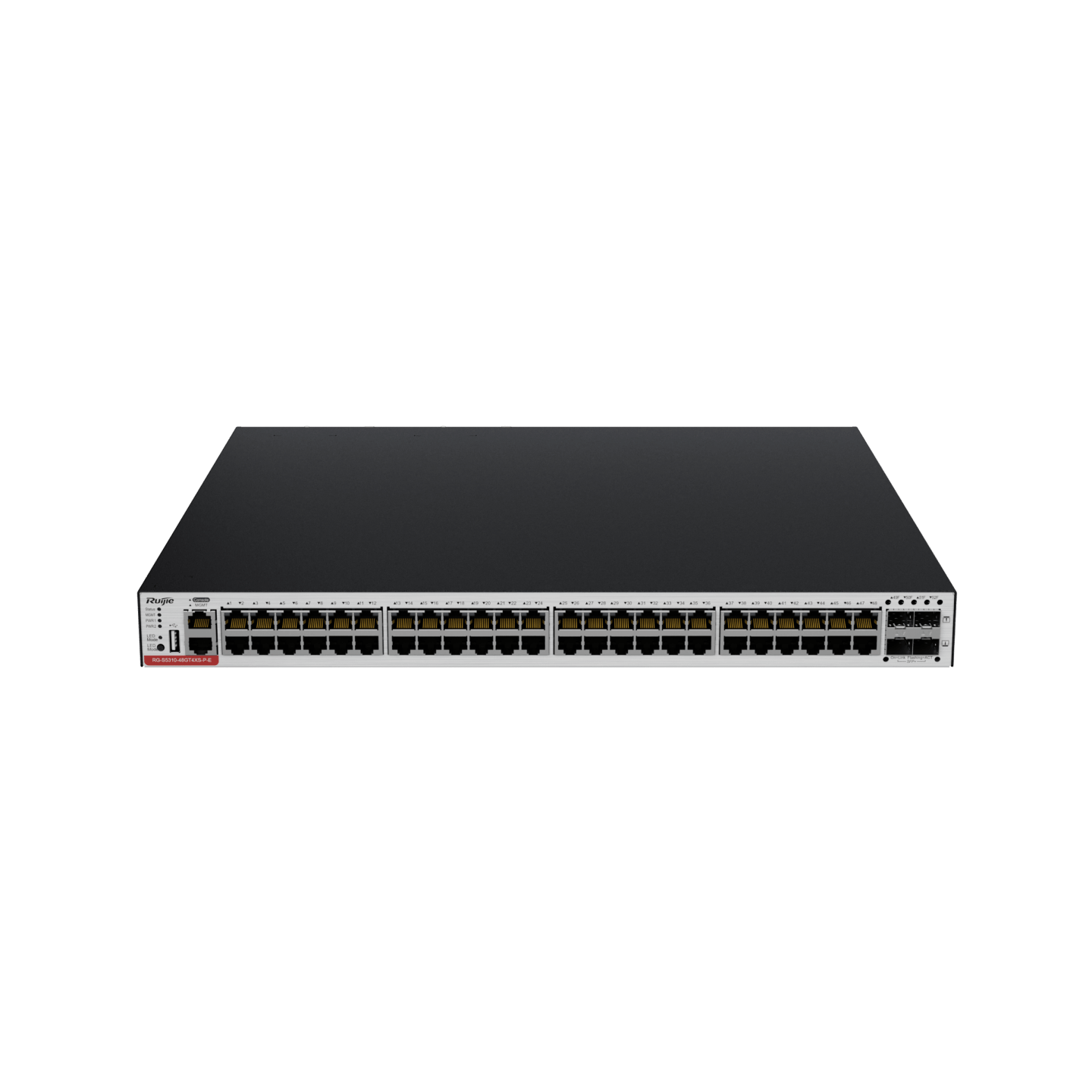

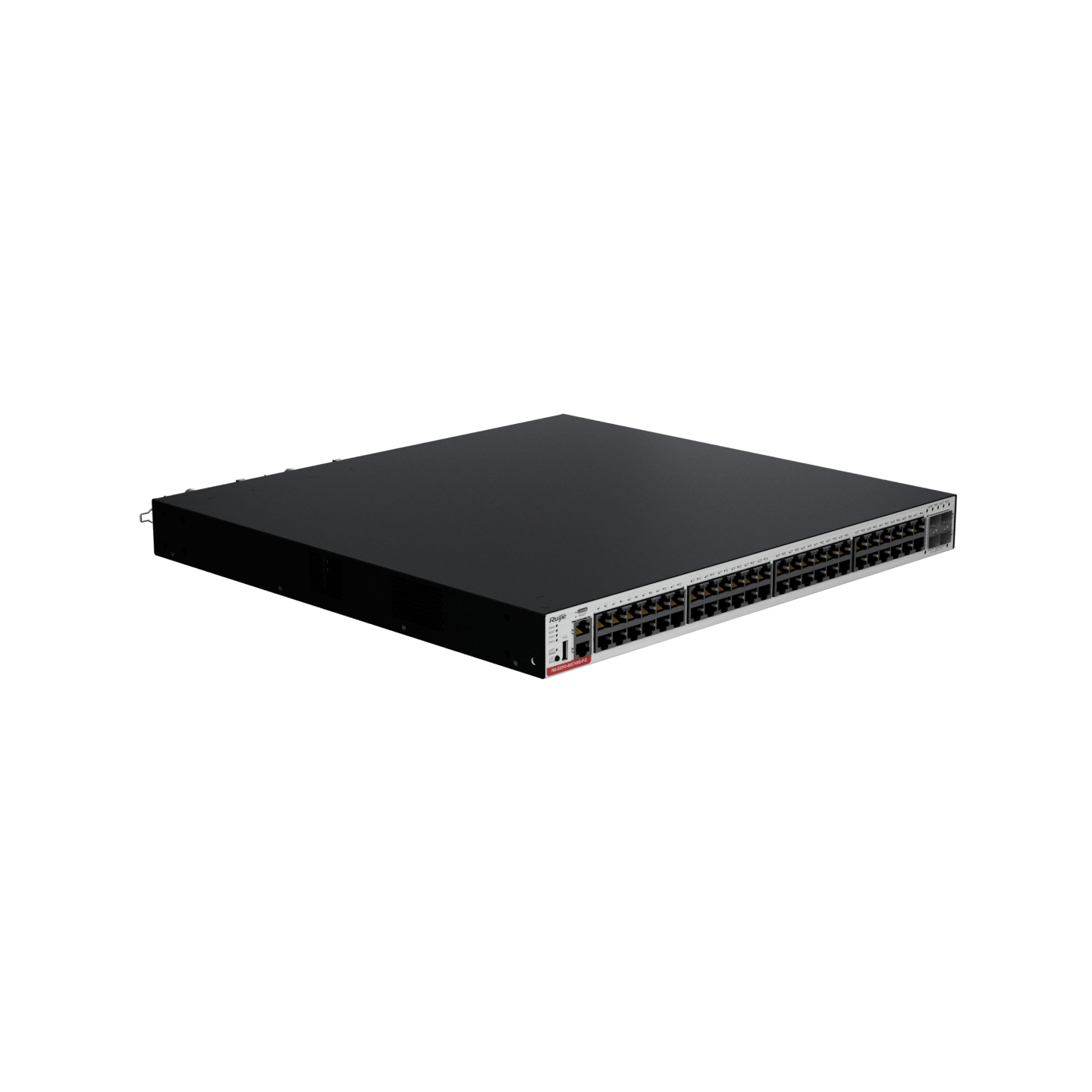

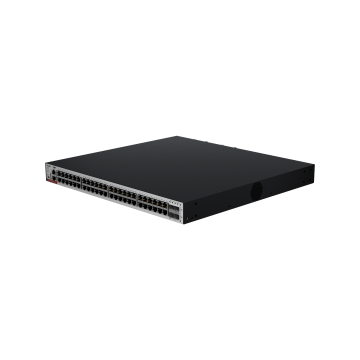

Ruijie RG-CS83-48GT4XS-PD 48-Port 1GE RJ45 Layer 3 Managed Access Switch with PoE+, 4-Port 10GE Uplink
4 x 1GE/10GE SFP+ ports
10GE Uplink için Katman 3 Erişim Anahtarı RG-CS83-48GT4XS-PD
Yüksek hızlı veri iletimi için dört adet 1GE/10GE SFP+ uplink portu ile büyük ölçekli kurumsal ve kampüs LAN'ları için tam gigabit erişim anahtarı
48 x 10/100/1000BASE-T bağlantı noktası, PoE+ destekli, kısa mesafeli hizmetler için yüksek hızlı ağ deneyimi sağlar

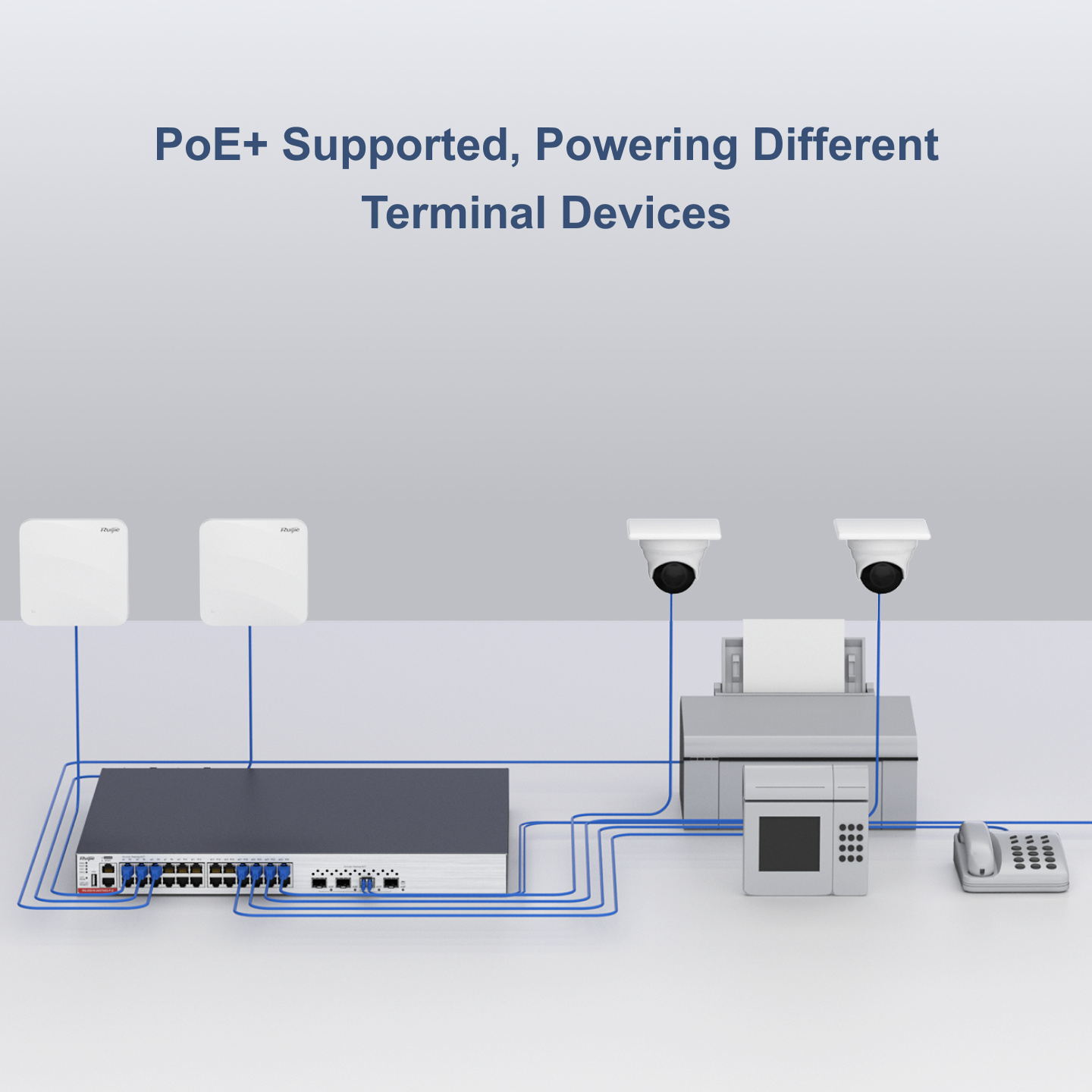

PoE+ Destekli, Farklı Terminal Cihazlarına Güç Sağlama
Anahtar, IEEE 802.3af uyumlu cihazlar için 15,4 W'a kadar veya IEEE 802.3at uyumlu cihazlar için 30 W'a kadar güç sağlayarak, güvenlik gözetimi, telekonferans ve kablosuz kapsama alanı gibi yaygın PoE uygulamalarının gereksinimlerini karşılayan, güçle çalışan cihazlar için gerekli gücü otomatik olarak algılar ve sağlar

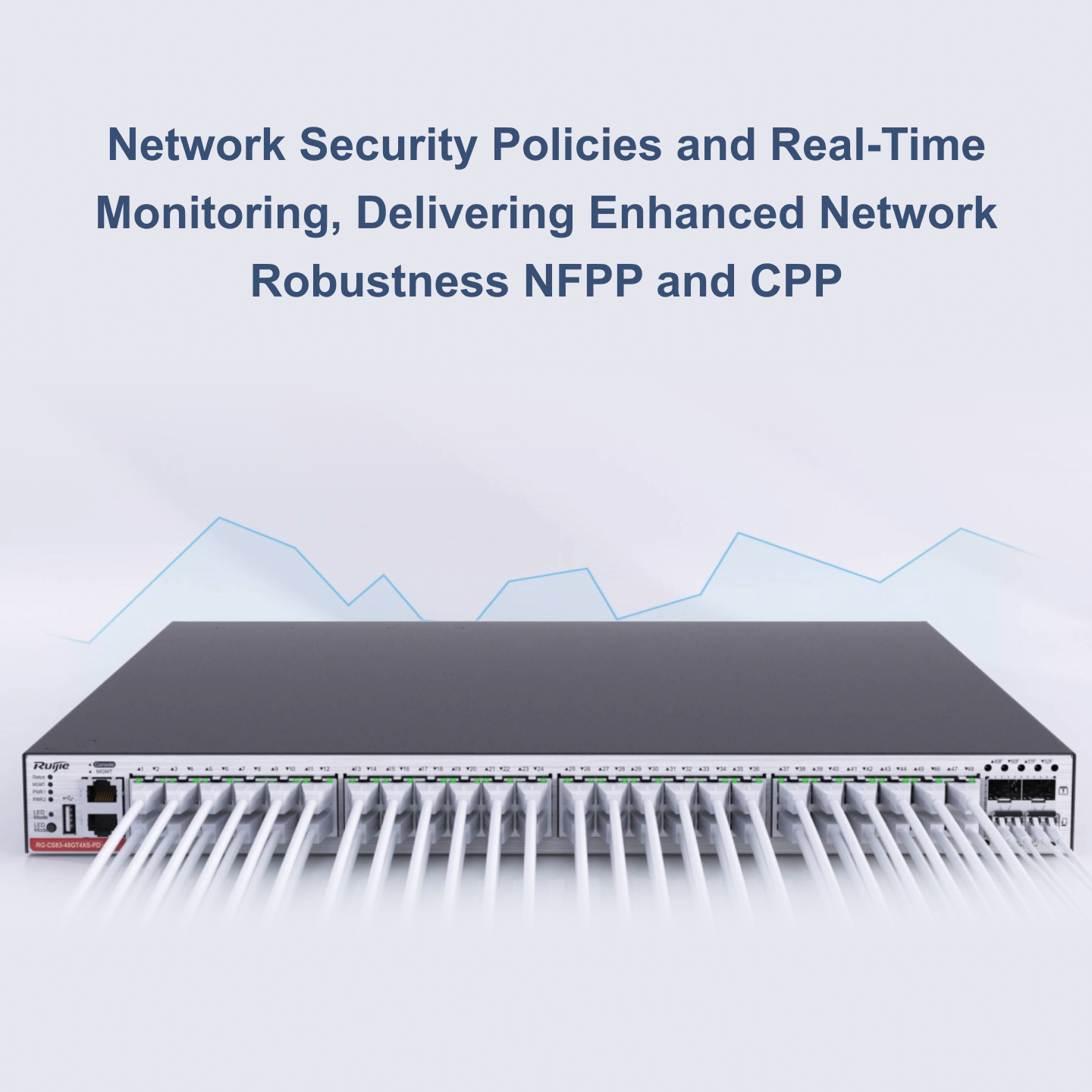

Ağ Güvenlik Politikaları ve Gerçek Zamanlı İzleme, Gelişmiş Ağ Sağlamlığı Sunar
CPU Protect Policy (CPP), yüksek CPU kullanımını önlemek için CPU'ya gönderilen paket türünü ve trafik hacmini kontrol etmek için desteklenir.
Ağ Temel Koruma İlkesi (NFPP), ağ güvenliğini ve istikrarını sağlamak için saldırgan davranışları olan kullanıcıları izole etmek için desteklenir
Hardware Specifications
|
Port Specifications |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Fixed service port |
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
|
Module slot |
2 x power module slots |
|
|
Power module |
RG-PA600I-P-F RG-PA1000I-P-F |
|
|
Fixed management ports |
1 x RJ45 console port 1 x RJ45 MGMT port |
|
|
USB |
1 x USB port |
|
|
System Specifications |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Packet forwarding rate |
96 Mpps |
132 Mpps |
|
Switching capacity |
128 Gbps |
176 Gbps |
|
CPU |
Dual-core CPU, each core with the clock speed of 1.2 GHz |
|
|
BootROM |
16 MB |
|
|
Flash memory |
2 GB |
|
|
Memory |
1 GB |
|
|
Switch buffer |
3 MB |
|
|
MAC address table size |
32,000 |
|
|
ARP table size |
4,000 |
|
|
Number of IPv4 unicast routes |
8,000 |
|
|
Number of IPv4 multicast routes |
2,500 |
|
|
Number of IPv6 unicast routes |
4,000 |
|
|
Number of IPv6 multicast routes |
1,200 |
|
|
Number of ACEs |
Ingress: 3,500 Egress:1,500 |
|
|
Number of VSU members |
4 |
|
|
VLAN translation |
4,094 |
|
|
Dimensions and Weight |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Unit dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm (17.40 in.x 16.54 in.x 1.72 in.) |
|
|
Shipping dimensions (W x D x H) |
570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.) |
|
|
Rack height |
1 RU |
|
|
Unit weight |
4.3 kg (9.48 lbs) |
4.6 kg (10.14 lbs) |
|
Shipping weight |
6.78 kg (14.95 lbs) |
6.98 kg (15.39 lbs) |
|
Power Supply and Consumption |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Power supply |
2 x pluggable power modules |
|
|
Power module redundancy |
For dual power supplies, 1+1 power redundancy is supported only when the total PoE load of the device is less than the PoE output power of a single power supply |
|
|
Power input |
RG-PA600I-P-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
|
|
Maximum output power |
RG-PA600I-P-F: 600 W RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
|
|
Maximum power consumption |
65 W (non-PoE) 810 W (full PoE load) |
75 W (non-PoE) 1570 W (full PoE load) |
|
PoE port |
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
|
|
PoE power cable pairs |
Mode A (1-2, 3-6 pairs) |
|
|
PoE output power |
Each PoE port provides up to 30 W of power The maximum power depends on the configured power supply. ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24) |
Each PoE port provides up to 30 W of power The maximum power depends on the configured power supply. ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W ● 1 x RG-PA1000I-P-F: 740 W ● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48) |
|
Energy saving |
Supported |
|
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
|
Environment and Reliability |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Temperature |
Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|
|
Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|
|
Altitude |
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
|
|
Mean time between failure (MTBF) |
356,000 hours (about 41 years, dual power modules) 208,000 hours (about 24 years, single power module) |
315,000 hours (about 36 years, dual power modules) 193,000 hours (about 22 years, single power module) |
|
Fan |
1 x fixed fan module |
|
|
Heat dissipation |
Left-to-right and front-to-right airflow |
|
|
Acoustic noise |
27°C (80.6°F): 51.6 dB 45°C (113°F): 57.4 dB |
27°C (80.6°F): 51.6 dB 45°C (113°F): 58.3 dB |
|
Power module hot swapping |
Supported |
|
|
USB hot swapping |
Supported |
|
|
Cable hot swapping |
Supported |
|
|
Power supply monitoring |
Monitoring of power supply model and status Power supply fault alarming |
|
|
Fan monitoring |
Fan speed adjustment: 3 levels Automatic speed adjustment Fan failure alarming |
|
|
Temperature monitoring |
Temperature monitoring, over-temperature alarming If the ambient temperature exceeds a certain value, the device will perform reset protection |
|
|
ESD |
ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
|
|
Surge protection |
MGMT port: 4 kV Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV |
|
|
Conformal coating |
Conformal coating supported (key components only) |
|
|
Certifications and Regulatory Compliance |
RG-CS83-24GT4XS-PD |
RG-CS83-48GT4XS-PD |
|
Safety regulation |
IEC 62368-1 |
|
|
EMC regulation |
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
|
|
Communication standard |
IEEE 802.3-2005 Ethernet standard IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication |
|
Software Specifications
|
RG-CS83-PD Series |
|
|
Feature |
Description |
|
Ethernet switching |
Jumbo frame (maximum length: 9216 bytes) |
|
IEEE 802.1Q (4K VLANs) |
|
|
Voice VLAN |
|
|
Super VLAN and private VLAN |
|
|
MAC VLAN, port-based VLAN, protocol-based VLAN, and IP-subnet based VLAN |
|
|
GVRP |
|
|
Basic QinQ Selective QinQ |
|
|
STP, RSTP, and MSTP |
|
|
ERPS (G.8032) |
|
|
LLDP/LLDP-MED |
|
|
LACP (IEEE 802.3ad) |
|
|
IP service |
ARP |
|
DHCP client, DHCP relay, and DHCP server |
|
|
DHCP snooping |
|
|
DNS |
|
|
DHCPv6 client and DHCPv6 relay |
|
|
DHCPv6 snooping |
|
|
Neighbor Discovery (ND) and ND snooping |
|
|
IP routing |
Static routing |
|
RIP, RIPng |
|
|
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 |
|
|
BGP4 and BGP4+ |
|
|
IPv4 and IPv6 VRF |
|
|
IPv4 and IPv6 PBR |
|
|
Multicast |
IGMP v1/v2/v3, and IGMP proxy |
|
IGMP v1/v2/v3 snooping |
|
|
PIM-DM, PIM-SM, and PIM-SSM |
|
|
MSDP |
|
|
MLD v1/v2 |
|
|
MLD snooping v1/v2 |
|
|
PIM-SMv6, PIM-SSM v6 |
|
|
ACL and QoS |
Standard IP ACLs Extended IP ACLs Extended MAC ACLs ACL80 IPv6 ACL |
|
ACL redirection |
|
|
Port traffic identification |
|
|
Port traffic rate limiting |
|
|
802.1p/DSCP/ToS traffic classification Eight priority queues per interface |
|
|
Traffic policing: CAR |
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
|
|
Congestion avoidance: tail drop, RED, and WRED |
|
|
Rate limiting in each queue |
|
|
Security |
Multiple AAA modes |
|
RADIUS and TACAS+ |
|
|
Port-based and MAC-based 802.1x authentication |
|
|
Web authentication |
|
|
Allowlist |
|
|
HTTPS |
|
|
SSHv1, SSHv2 |
|
|
Global IP-MAC binding |
|
|
ICMP |
|
|
Port isolation and port security |
|
|
IP Source Guard |
|
|
SAVI |
|
|
Gateway ARP anti-spoofing |
|
|
CPP(CPU Protection Policy） |
|
|
NFPP( Network Foundation Protection Policy） |
|
|
Strict and loose RPF uRPF ignoring default routes |
|
|
Reliability |
REUP, RLDP, DLDP |
|
IPv4 VRRP v2/v3 and IPv6 VRRP |
|
|
BFD |
|
|
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) |
|
|
Hot swapping of power modules and cables |
|
|
3-level fan speed adjustment Fan fault alarm |
|
|
Device virtualization |
Virtual Switching Unit (VSU) |
|

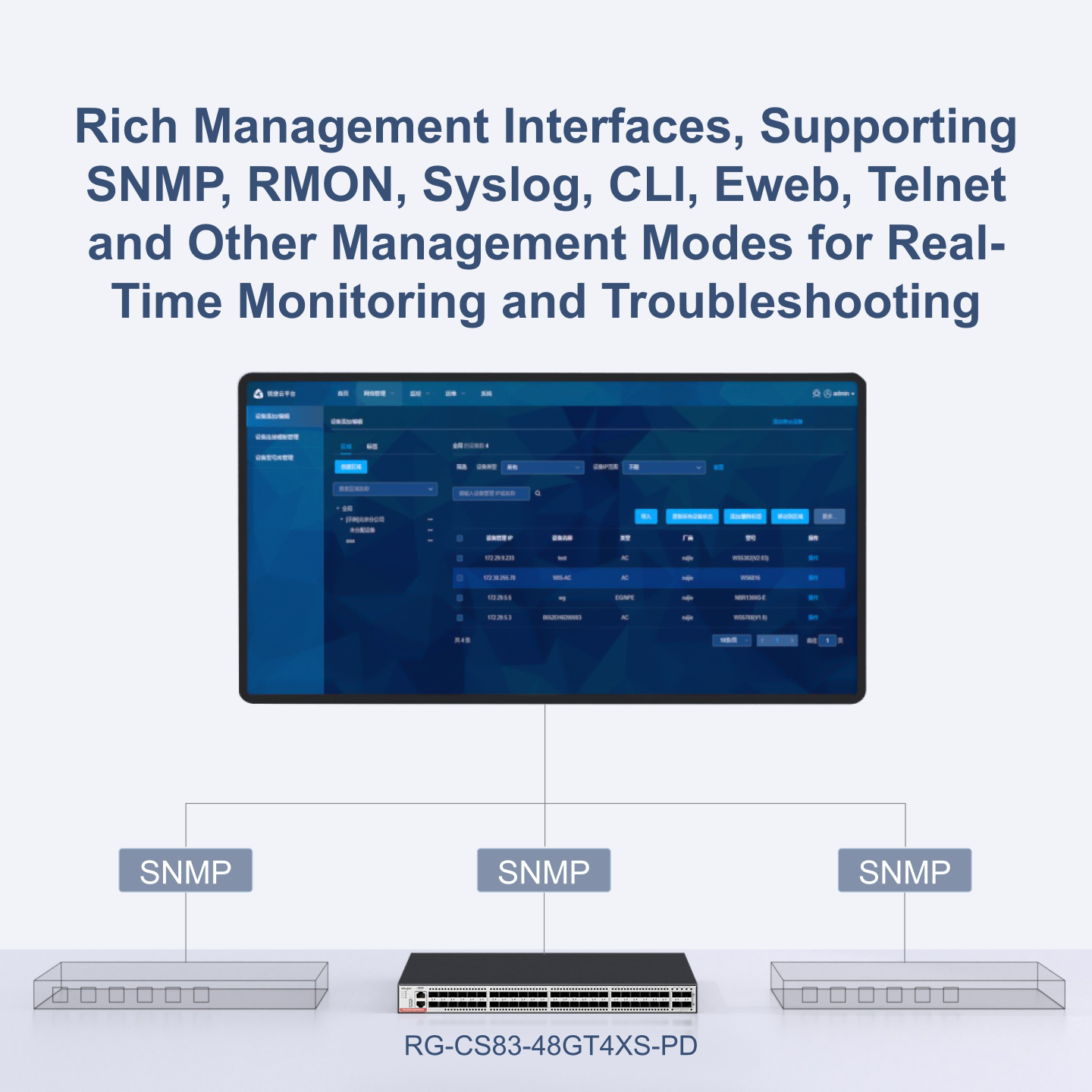

NMS and maintenance |
SPAN, RSPAN, and ERSPAN |
|
sFlow |
|
|
NTP and SNTP |
|
|
FTP and TFTP |
|
|
SNMP v1/v2/v3 |
|
|
RMON (1, 2, 3, 9) |
|
|
NETCONF |
|
|
CWMP (TR-069) standard protocol |
|
|
gRPC |
|
|
Cloud and SON |
|
|
PoE |
IEEE 802.3af and 802.3at Uninterruptible power supply upon hot start Port priority |
Switches and Power Modules
|
Model |
Description |
|
RG-CS83-24GT4XS-PD |
24 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, supporting PoE remote power supply and the maximum PoE output power of 740 W. (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.) |
|
RG-CS83-48GT4XS-PD |
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, supporting PoE remote power supply and the maximum PoE output power of 1480 W. (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.) |
|
RG-PA600I-P-F |
600 W AC power module, PoE power module |
|
RG-PA1000I-P-F |
1000 W AC power module, PoE power module |
Note: 4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers.
Optical Transceivers and Cables
1GE
|
Model |
Description |
|
Mini-GBIC-GT |
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a The port needs to be configured with auto-negotiation |
|
Mini-GBIC-SX-MM850 |
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
|
Mini-GBIC-LX-SM1310 |
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
|
Mini-GBIC-LH40-SM1310 |
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
|
MINI-GBIC-ZX80-SM1550 |
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
|
GE-SFP-LX20-SM1310-BIDI |
1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF |
|
GE-SFP-LX20-SM1550-BIDI |
1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF |
|
GE-SFP-LH40-SM1310-BIDI |
1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF |
|
GE-SFP-LH40-SM1550-BIDI |
1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
|
Model |
Description |
|
XG-SFP-SR-MM850 |
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
|
XG-SFP-LR-SM1310 |
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
|
XG-SFP-ER-SM1550 |
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
|
XG-SFP-AOC1M |
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
|
XG-SFP-AOC3M |
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers |
|
XG-SFP-AOC5M |
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
