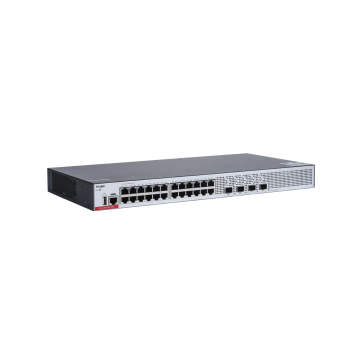

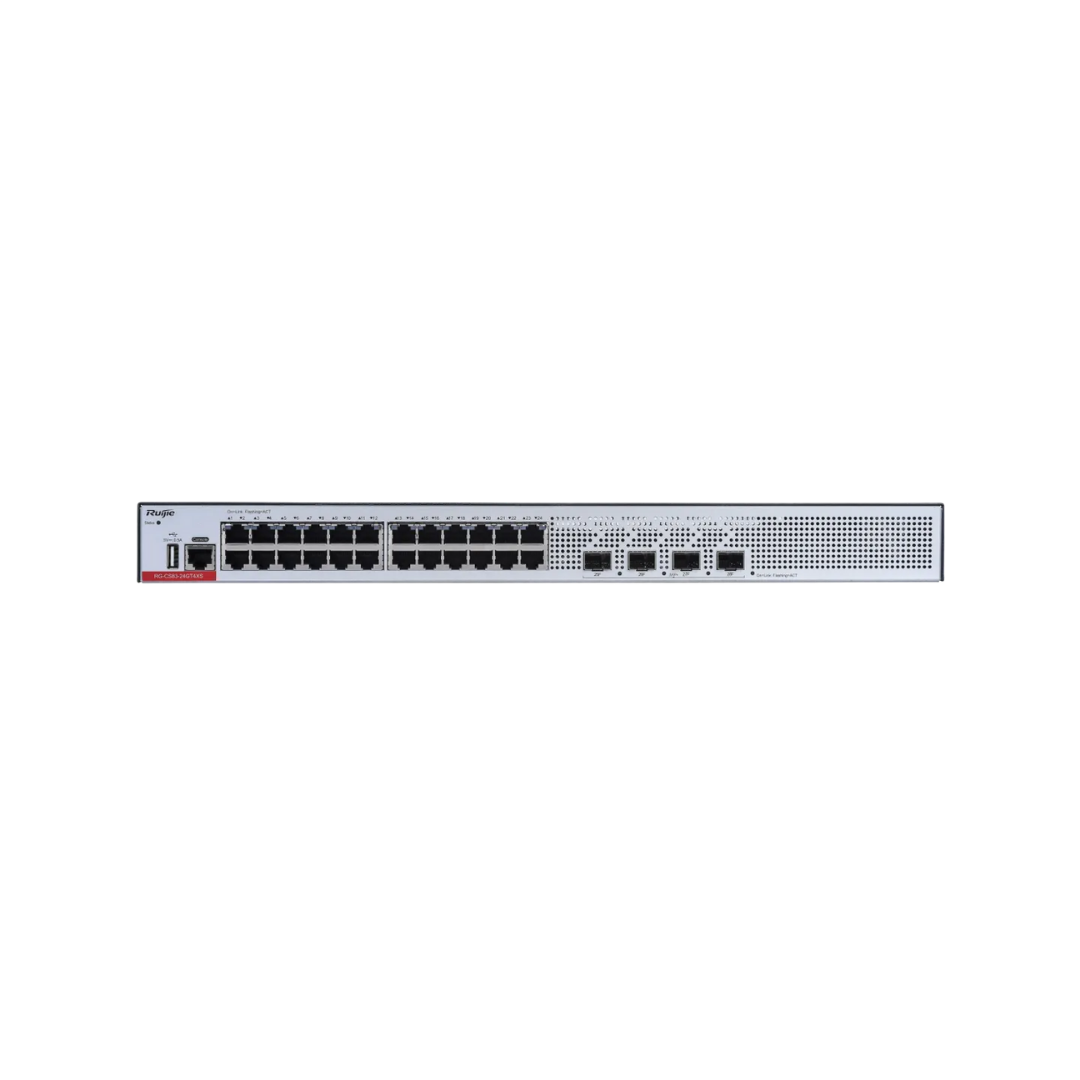

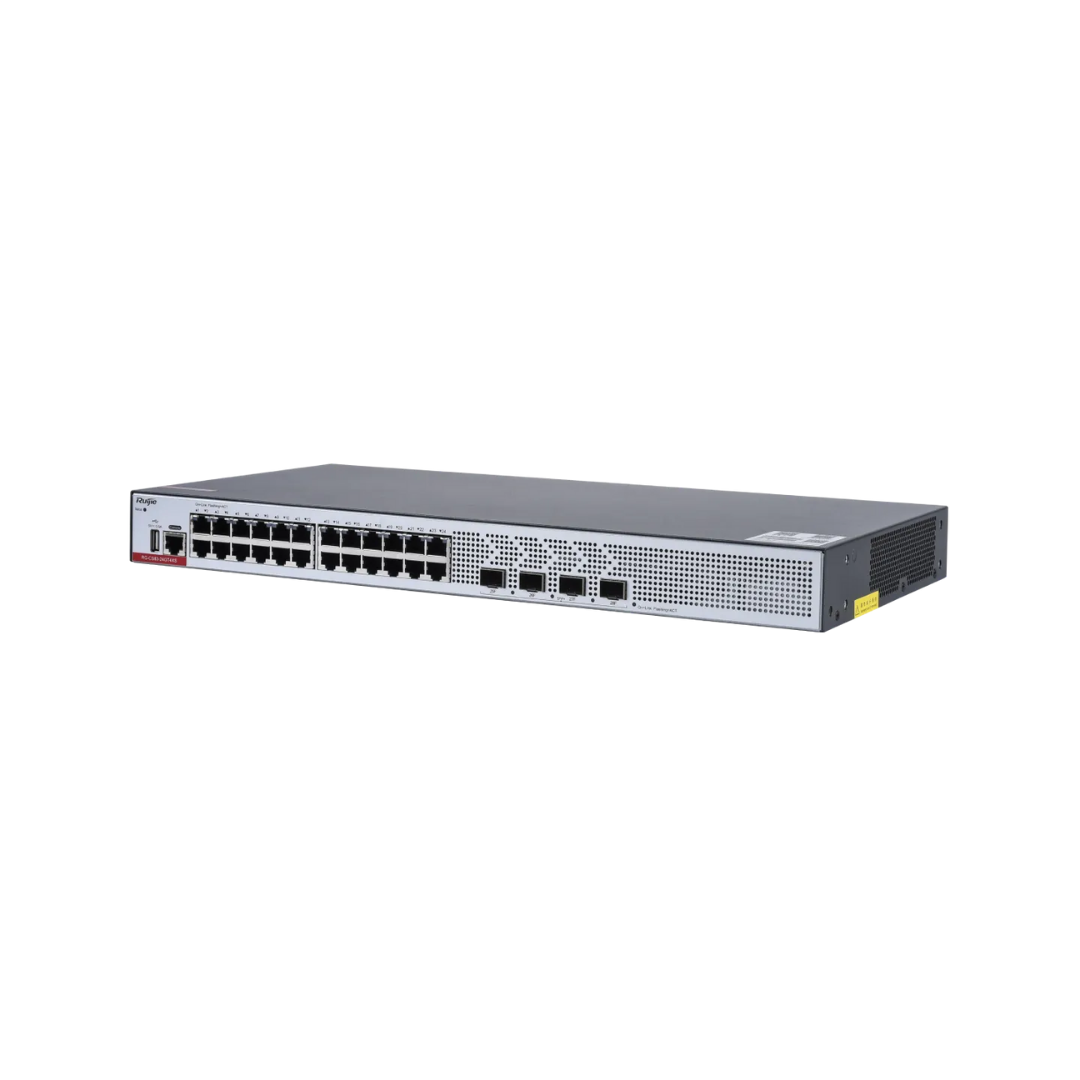

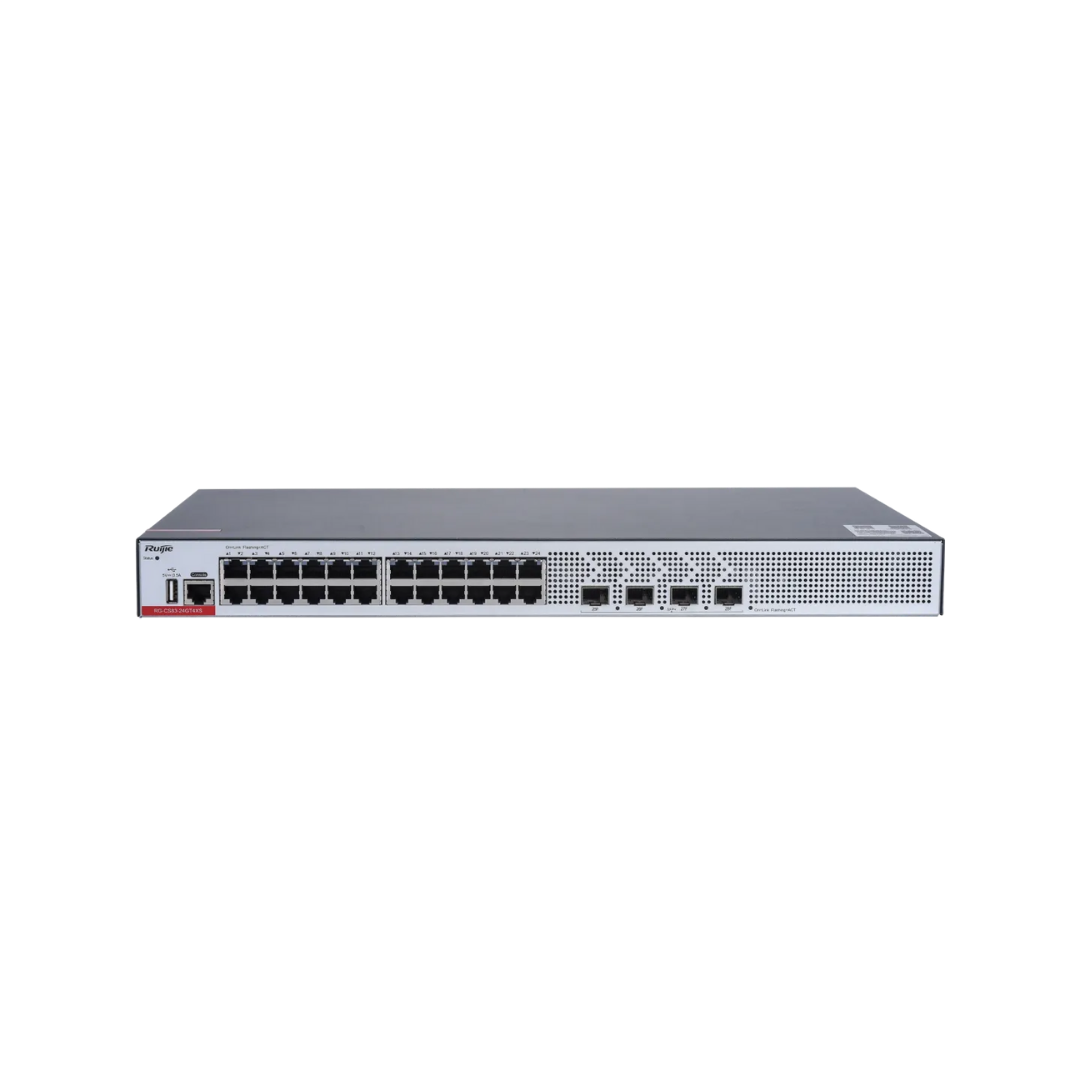

Ruijie RG-CS83-24GT4XS 24-Port 1GE RJ45 Layer 3 Managed Access Switch, 4-Port 10GE Uplink I Ruijie Networks
Öne Çıkan Özellikler
- Basit ve kolay ağ bakımı sağlayan çoklu ağ yönetim yöntemleri sağlar.
- Açık ve programlanabilir RGOS modüler işletim sistemi sağlar. Temel işlevler ana sürüme dahil edilir ve özel işlevler uygulama modunda yayınlanarak temel işlevlerin kararlılığı sağlanır.
- Ağ çalışmasını kesintiye uğratmadan, çevrimiçi işlemlerle ilgili hataları saniyeler içinde düzeltir.
- Platformlar arası uygulamalara izin veren Python'u destekler.
- Kesintisiz hizmet sağlamak için işlevleri çevrimiçi olarak yükseltir ve genişletir.
Katman 3 GE Yönetilen Erişim Anahtarı
RG-CS83-24GT4XS
Yüksek hızlı veri iletimi için dört adet 1GE/10GE SFP+ uplink portu ile büyük ölçekli kurumsal ve kampüs LAN'ları için Gigabit erişim anahtarı
24 x 10/100/1000BASE-T bağlantı noktası, kısa mesafeli hizmetler ve esnek ağ iletişimi için yüksek hızlı ağ erişimi sağlar

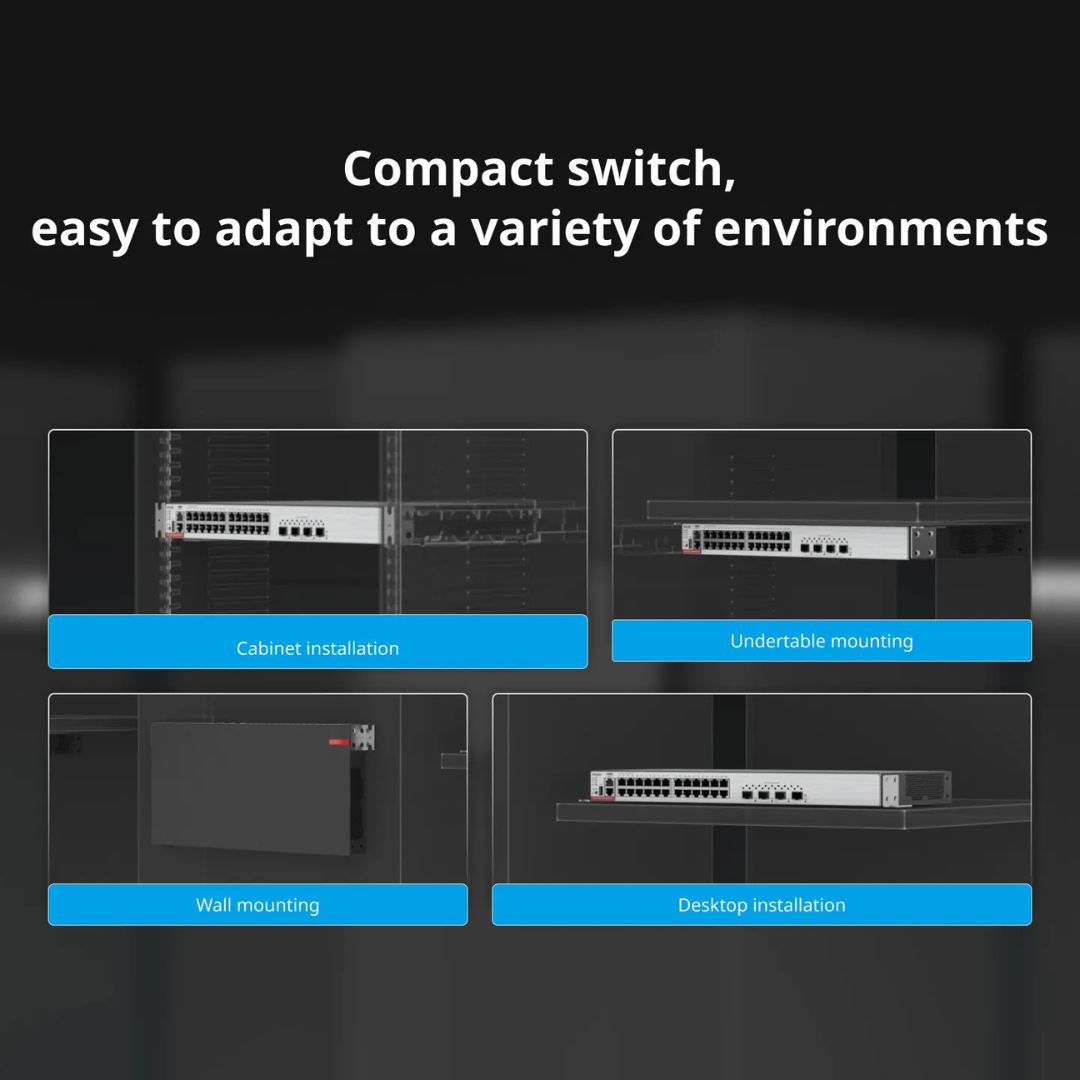

Kompakt Ruijie RG-CS83-24GT4XS, çeşitli ortamlara kolay uyum sağlar.
Ruijie RG-CS83-24GT4XS, kullanıcı dostu kurulum özelliğine sahiptir. 220 mm'lik birleşik boyutların tamamı çeşitli ortamlara uyarlanabilir. duvara, masaya veya masanın altına monte edilebilir.
Ruijie RG-CS83-24GT4XS, 35 dB'den daha az çalışma gürültüsü ile kademesiz hız kontrol fanları ve gelişmiş ısı dağıtma mimarisini benimser. Çalışırken düşen bir yaprak kadar sessiz ve göze batmayan fansız model de mevcuttur.
Donanım düzeyinde çift önyükleme, Sunan
Taşıyıcı Sınıfı Güvenilirlik
Donanım düzeyinde önyükleme yedekliliği sağlamak amacıyla önyükleme yazılımını depolamak için kullanılan iki flaş yongası,
flaş yonga hataları nedeniyle anahtar önyükleme hatalarından kaçınma
10 kV Aşırı Gerilim Koruması
Sektör lideri bağlantı noktası aşırı gerilim koruma özelliği Bağlantı noktaları 10 kV dalgalanmaya dayanabilir. PoE güç modülleri 8 kV dalgalanmaya dayanabilir ve PoE olmayanlar 6 kV dalgalanmaya, güçlü koruma yeteneğine, zorlu ortama adaptasyona dayanabilir.
Hardware Specifications
|
Port Specifications |
RG-CS83-24GT4XS |
RG-CS83-48GT4XS |
RG-CS83-12GT4XS-P |
RG-CS83-24GT4XS-P |
RG-CS83-48GT4XS-P |
|
Fixed service ports |
24 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports |
12 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
|
Fixed management port |
1 x RJ45 console port |
||||
|
USB |
1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested) |
||||
|
System Specifications |
RG-CS83-24GT4XS |
RG-CS83-48GT4XS |
RG-CS83-12GT4XS-P |
RG-CS83-24GT4XS-P |
RG-CS83-48GT4XS-P |
|
Packet forwarding rate |
96 Mpps |
132 Mpps |
78 Mpps |
96 Mpps |
132 Mpps |
|
Switching capacity |
128 Gbps |
176 Gbps |
104 Gbps |
128 Gbps |
176 Gbps |
|
CPU |
Dual-core CPU, each core with the clock speed of 1.0 GHz |
||||
|
BootROM |
16 MB (storing boot software for 1+1 boot redundancy) |
||||
|
Flash memory |
512 MB (storing boot software for 1+1 boot redundancy) |
||||
|
Memory |
1 GB |
||||
|
Switch buffer |
4 MB |
||||
|
MAC address table size |
16,000 |
||||
|
ARP table size |
4,000 |
||||
|
Number of IPv4 unicast routes |
6,000 |
||||
|
Number of IPv4 multicast routes |
1,000 |
||||
|
Number of IPv6 unicast routes |
2,000 |
||||
|
Number of IPv6 multicast routes |
750 |
||||
|
Number of ACEs |
Ingress: 1,750 Egress: 800 |
||||
|
Number of VSU members |
4 |
||||
|
Dimensions and Weight |
RG-CS83-24GT4XS |
RG-CS83-48GT4XS |
RG-CS83-12GT4XS-P |
RG-CS83-24GT4XS-P |
RG-CS83-48GT4XS-P |
|
Unit dimensions (W x D x H) |
442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
||||
|
Shipping dimensions (W x D x H) |
540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.) |
||||
|
Rack height |
1 RU |
||||
|
Unit weight |
3.1 kg (6.83 lbs) |
3.25 kg (7.17 lbs) |
3.3 kg (7.28 lbs) |
3.4 kg (7.50 lbs) |
4.0 kg (8.82 lbs) |
|
Shipping weight |
4.10 kg (9.04 lbs) |
4.10 kg (9.04 lbs) |
4.18 kg (9.22 lbs) |
4.25 kg (9.37 lbs) |
4.90 kg (10.80 lbs) |
|
Power supply and Consumption |
RG-CS83-24GT4XS |
RG-CS83-48GT4XS |
|
Power supply |
1 x fixed power supply |
1 x fixed power supply |
|
Power input |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 0.6 A |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 1.5 A |
|
Maximum output power |
Built-in power supply: 25 W |
Built-in power supply: 40 W |
|
Maximum power consumption |
25 W |
40 W |
|
Energy saving |
Supported |
Supported |
|
Power supply and Consumption |
RG-CS83-12GT4XS-P |
RG-CS83-24GT4XS-P |
RG-CS83-48GT4XS-P |
|
Power supply |
1 x fixed power supply |
1 x fixed power supply |
1 x fixed power supply |
|
Power input |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
AC input ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
|
Maximum output power |
Built-in power supply: 409 W |
Built-in power supply: 409 W |
Built-in power supply: 460 W |
|
Maximum power consumption |
35 W (non-PoE) 405 W (PoE full load) |
35 W (non-PoE) 405 W (PoE full load) |
52 W (non-PoE) 460 W (PoE full load) |
|
PoE port |
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
|
PoE power cable pairs |
Mode A (1-2, 3-6 pairs) |
Mode A (1-2, 3-6 pairs) |
Mode A (1-2, 3-6 pairs) |
|
PoE output power |
Each PoE port provides up to 30 W of power The maximum power is 370 W |
Each PoE port provides up to 30 W of power The maximum power is 370 W |
Each PoE port provides up to 30 W of power The maximum power is 405 W |
|
Energy saving |
Supported |
Supported |
Supported |
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
|
Environment and Reliability |
RG-CS83-24GT4XS |
RG-CS83-48GT4XS |
RG-CS83-12GT4XS-P |
RG-CS83-24GT4XS-P |
RG-CS83-48GT4XS-P |
|
Temperature |
Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
||||
|
Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
||||
|
Altitude |
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) |
||||
|
Mean time between failure (MTBF) |
207,962 hours (about 23 years) |
208,926 hours (about 23 years) |
211,466 hours (about 24 years) |
209,714 hours (about 23 years) |
200,253 hours (about 22 years) |
|
Fan |
No fan |
1 x fixed fan module |
1 x fixed fan module |
1 x fixed fan module |
1 x fixed fan module |
|
Heat dissipation |
Fanless design, natural heat dissipation |
Front-to-right and left-to-right airflow |
|||
|
Acoustic noise |
Fanless, quiet, < 20 dB |
27℃ (80.6°F): 32 dB |
27℃ (80.6°F): 35 dB |
27℃ (80.6°F): 32 dB |
27℃ (80.6°F): 35 dB |
|
Cable hot swapping |
Cable hot swapping for all ports |
||||
|
Fan monitoring |
Fanless design |
PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming |
PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming |
PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming |
PID-based multi-level speed adjustment Fan speed control (manual configuration not supported) Fan failure alarming |
|
Temperature monitoring |
Supported |
Supported |
Supported |
Supported |
Supported |
|
ESD |
ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
||||
|
Surge protection |
Power port: common mode 6 kV, differential mode 6 kV Communication port: 10 kV |
Power port: common mode 6 kV, differential mode 6 kV Communication port: 10 kV |
Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV |
Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV |
Power port: common mode 6 kV, differential mode 8 kV Communication port: 10 kV |
|
Conformal coating |
Conformal coating supported (key components only) |
||||
|
Certifications and Regulatory Compliance |
RG-CS83 Series |
|
Safety regulation |
IEC 62368-1 |
|
EMC regulation |
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
|
Communication standard |
IEEE 802.3-2005 Ethernet standard IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication |
|
RoHS |
Supported |
Software Specifications
|
RG-CS83 Series |
|
|
Feature |
Description |
|
Ethernet switching |
Jumbo frame (maximum length: 9,216 bytes) |
|
802.3az EEE |
|
|
IEEE 802.1Q (4K VLANs) |
|
|
Voice VLAN |
|
|
Super-VLAN and private VLAN |
|
|
MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN |
|
|
GVRP |
|
|
Basic QinQ Selective QinQ |
|
|
STP, RSTP, and MSTP |
|
|
ERPS (G.8032) |
|
|
LLDP/LLDP-MED |
|
|
IP service |
ARP |
|
DHCP client, DHCP relay, and DHCP server |
|
|
DHCP snooping |
|
|
DNS |
|
|
DHCPv6 client, DHCPv6 relay, and DHCPv6 server |
|
|
DHCPv6 snooping |
|
|
Neighbor Discovery (ND) and ND snooping |
|
|
IP routing |
Static routing |
|
RIP and RIPng |
|
|
OSPFv2 and OSPFv3 |
|
|
IPv4 and IPv6 VRF |
|
|
IPv4 and IPv6 PBR |
|
|
Multicast |
IGMP v1/v2/v3, and IGMP proxy |
|
IGMP v1/v2 snooping |
|
|
PIM-DM, PIM-SM, and PIM-SSM |
|
|
MSDP |
|
|
MLD v1/v2 |
|
|
MLD snooping v1/v2 |
|
|
PIM-SMv6 and PIM-SSM v6 |
|
|
ACL and QoS |
Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
|
ACL redirection |
|
|
Traffic rate limiting on an interface |
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
|
|
Congestion avoidance: tail drop |
|
|
802.1p/DSCP/ToS traffic classification Eight priority queues per interface |
|
|
Security |
Multiple AAA modes |
|
RADIUS and TACAS+ |
|
|
Interface-based and MAC address-based 802.1x authentication |
|
|
Web authentication |
|
|
HTTPS |
|
|
SSHv1 and SSHv2 |
|
|
Global IP-MAC binding |
|
|
Port isolation and port security |
|
|
IP source guard |
|
|
SAVI |
|
|
CPP and NFPP |
|
|
Reliability |
REUP, RLDP, DLDP |
|
IPv4 VRRP v2/v3 and IPv6 VRRP |
|
|
BFD |
|
|
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) |
|
|
Dual-Boot Redundancy |
|
|
Fan speed adjustment Fan fault alarm |
|
|
Device virtualization |
Virtual Switching Unit (VSU) |
|
NMS and maintenance |
SPAN, RSPAN |
|
sFlow |
|
|
NTP and SNTP |
|
|
FTP and TFTP |
|
|
SNMP v1/v2/v3 |
|
|
RMON (1, 2, 3, 9) |
|
|
NETCONF |
|
|
CWMP (TR-069) |
|
|
gRPC |
|
|
Cloud and SON |
|
|
PoE |
RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at Warm start Interface priority |
