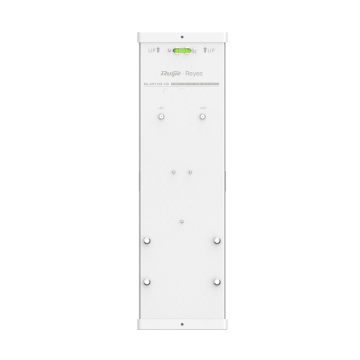

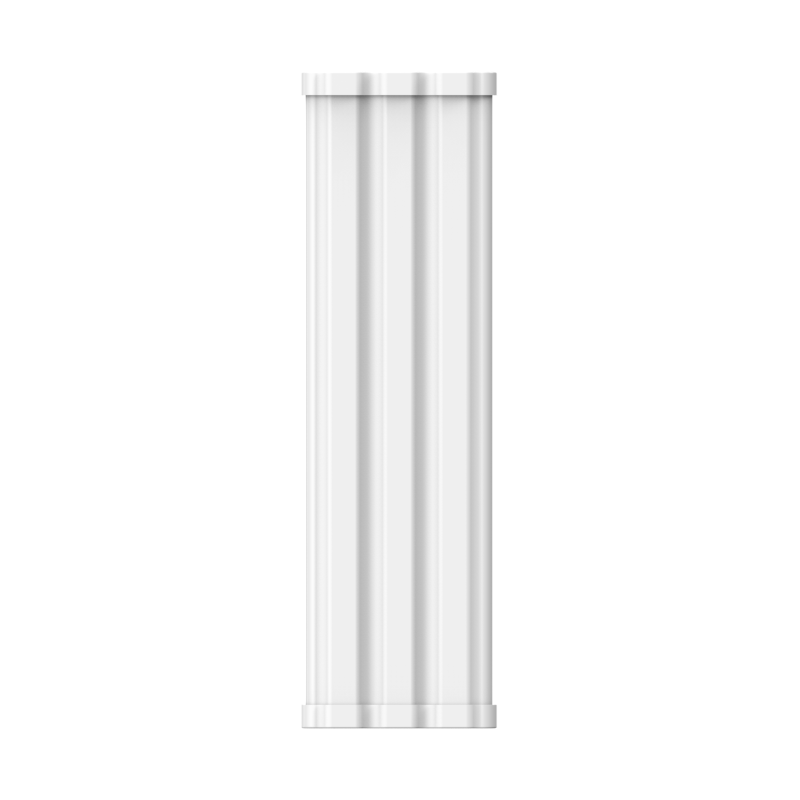

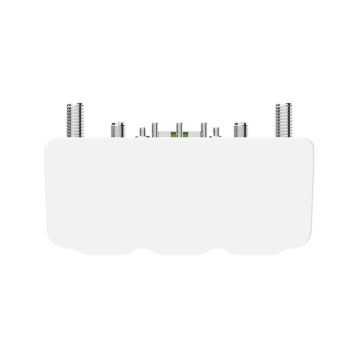

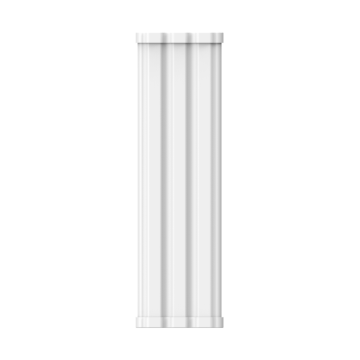

Ruijie RG ANT16S 120 5KM Anten 5 Ghz 120 Derece 16 dBi Station
16 dBi Anten Kazancı
120 Derece Yayın Yapma Kapasitesine Sahip.
5 Ghz Dual-Band Yayın yapma özelliğine sahiptir.
|
Type |
Specification |
CPE |
BaseStation |
Antenna |
|||
|
RG-AirMetro460F |
RG-AirMetro460G |
RG-AirMetro550G-B |
RG-ANT13-360 |
RG-ANT16S-120 |
RG-ANT20S-90 |
||
|
Hardware |
Working Distance |
15 KM |
15 KM |
With external antenna |
2 KM |
5 KM |
10 KM |
|
Gain |
23 dBi |
23 dBi |
With external antenna |
13 dBi |
16 dBi |
20 dBi |
|
|
Angle |
V: 9°, H: 9° |
V: 9°, H: 9° |
With external antenna |
360° |
120° |
90° |
|
|
Capacity |
5 GHz, 867 Mbps |
5 GHz, 867 Mbps |
5 GHz, 867 Mbps |
5 GHz |
5 GHz |
5 GHz |
|
|
Number of PtMP CPE |
/ |
/ |
1:32 |
/ |
/ |
/ |
|
|
Port |
1 10/ 100 Mbps |
1 10/ 100/ 1000 Mbps |
2 10/ 100/ 1000 Mbps |
/ |
/ |
/ |
|
|
IP rating |
IP65 |
IP65 |
IP55 |
IP55 |
IP55 |
IP55 |
|
|
Operation Temperature |
–40℃ to 70℃ |
–40℃ to 70℃ |
–40℃ to 80℃ |
/ |
/ |
/ |
|
|
Electrostatic Protection |
±24 kV Contact/ Air |
±24 kV Contact/ Air |
±24 kV Contact/ Air |
/ |
/ |
/ |
|
|
Lighting |
6 kV |
6 kv |
6 kV |
/ |
/ |
/ |
|
|
Power |
24 V Passive PoE |
24 V Passive PoE |
24 V Passive PoE 12 V DC Input |
/ |
/ |
/ |
|
|
LED |
3 Signal Strength LED |
3 Signal Strength LED |
3 Signal Strength LED |
/ |
/ |
/ |
|
|
Software |
Management System |
Ruijie Cloud EWeb SNMP(future version) |
Ruijie Cloud EWeb SNMP(future version) |
Ruijie Cloud EWeb SNMP(future version) |
/ |
/ |
/ |
|
Pairing Method |
One-press pairing in 30s App pairing in 2 mins |
One-press pairing in 30s App pairing in 2 mins |
One-press pairing in 30s App pairing in 2 mins |
/ |
/ |
/ |
|
