Ruijie RG-AP820-L(V3) | Wi-Fi 6 AX3000 İç Mekan Access Point

Dimensions and Weight

RG-AP820-L(V3)

Unit dimensions

(W x D x H)

220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)

Shipping dimensions

(W x D x H)

514 mm x 326 mm x 292 mm (20.24 in. x 12.83 in. x 11.50 in.)

Unit weight

Main unit: 0.6 kg (1.32 lbs)

Mounting bracket: 0.2 kg (0.44 lbs)

Shipping weight

8.46 kg (18.65 lbs)

Mounting

Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)

Lock option

Kensington lock and securing latch

Wi-Fi Radio

RG-AP820-L(V3)

Radio design

Dual-radio and up to four spatial streams:

● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1, 802.11b/g/n/ax:

● 2.400 GHz to 2.4835 GHz, ISM

Radio 2, 802.11a/n/ac/ax:

● 5.150 GHz to 5.250 GHz, U-NII-1

● 5.250 GHz to 5.350 GHz, U-NII-2A

● 5.470 GHz to 5.725 GHz, U-NII-2C

● 5.725 GHz to 5.850 GHz, U-NII-3/ISM

Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.

Data rates

Combined peak data rate: 2.976 Gbps

2.4 GHz radio

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

5 GHz radio

● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)

Antenna gain

2.4 GHz: 5 dBi

5 GHz: 5 dBi

Maximum transmit power

2.4 GHz radio: 26 dBm (23 dBm per chain)

5 GHz radio: 26 dBm (23 dBm per chain)

Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Thailand

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance

RG-AP820-L(V3)

Frequency Band and Protocol

Data Rate

Maximum Transmit Power per Transmit Chain

Maximum Receive Sensitivity per Receive Chain

2.4 GHz 802.11b

1 Mbps

23 dBm

-91 dBm

2 Mbps

23 dBm

-91 dBm

5.5 Mbps

23 dBm

-90 dBm

11 Mbps

23 dBm

-87 dBm

2.4 GHz 802.11g

6 Mbps

23 dBm

-89 dBm

24 Mbps

22 dBm

-82 dBm

36 Mbps

22 dBm

-78 dBm

54 Mbps

20 dBm

-72 dBm

2.4 GHz 802.11n (HT20)

MCS0

23 dBm

-85dBm

MCS7

19 dBm

-67 dBm

2.4 GHz 802.11n (HT40)

MCS0

23 dBm

-82 dBm

MCS7

19 dBm

-64 dBm

2.4 GHz 802.11ax (HE20)

MCS0

23 dBm

-85 dBm

MCS11

15 dBm

-58 dBm

2.4 GHz 802.11ax (HE40)

MCS0

23 dBm

-82 dBm

MCS11

15 dBm

-54 dBm

5 GHz 802.11a

6 Mbps

23 dBm

-89 dBm

24 Mbps

22 dBm

-82 dBm

36 Mbps

22 dBm

-78 dBm

54 Mbps

20 dBm

-72 dBm

5 GHz 802.11n (HT20)

MCS0

23 dBm

-85 dBm

MCS7

19 dBm

-67 dBm

5 GHz 802.11n (HT40)

MCS0

23 dBm

-82 dBm

MCS7

19 dBm

-64 dBm

5 GHz 802.11ac (VHT20)

MCS0

23 dBm

-85 dBm

MCS9

18 dBm

-60 dBm

5 GHz 802.11ac (VHT40)

MCS0

23 dBm

-82 dBm

MCS9

18 dBm

-57 dBm

5 GHz 802.11ac (VHT80)

MCS0

23 dBm

-79 dBm

MCS9

18 dBm

-53 dBm

5 GHz 802.11ax (HE20)

MCS0

23 dBm

-85 dBm

MCS11

16 dBm

-58 dBm

5 GHz 802.11ax (HE40)

MCS0

23 dBm

-82 dBm

MCS11

16 dBm

-54 dBm

5 GHz 802.11ax (HE80)

MCS0

23 dBm

-79 dBm

MCS11

16 dBm

-52 dBm

5 GHz 802.11ax (HE160)

MCS0

23 dBm

-77 dBm

MCS11

16 dBm

-50 dBm

Bluetooth Radio

RG-AP820-L(V3)

Bluetooth

Bluetooth 5.1

Antenna type

Onboard omnidirectional antenna

Maximum antenna gain

2.4 dBi, with a downtilt angle of roughly 30 degrees

Maximum transmit power

17 dBm (GFSK)

14 dBm (π/4-DQPSK, 8-DPSK)

Receive sensitivity

–95.5 dBm (DH5)

–95 dBm (π/4-DQPSK)

–87.5 dBm (8-DPSK)

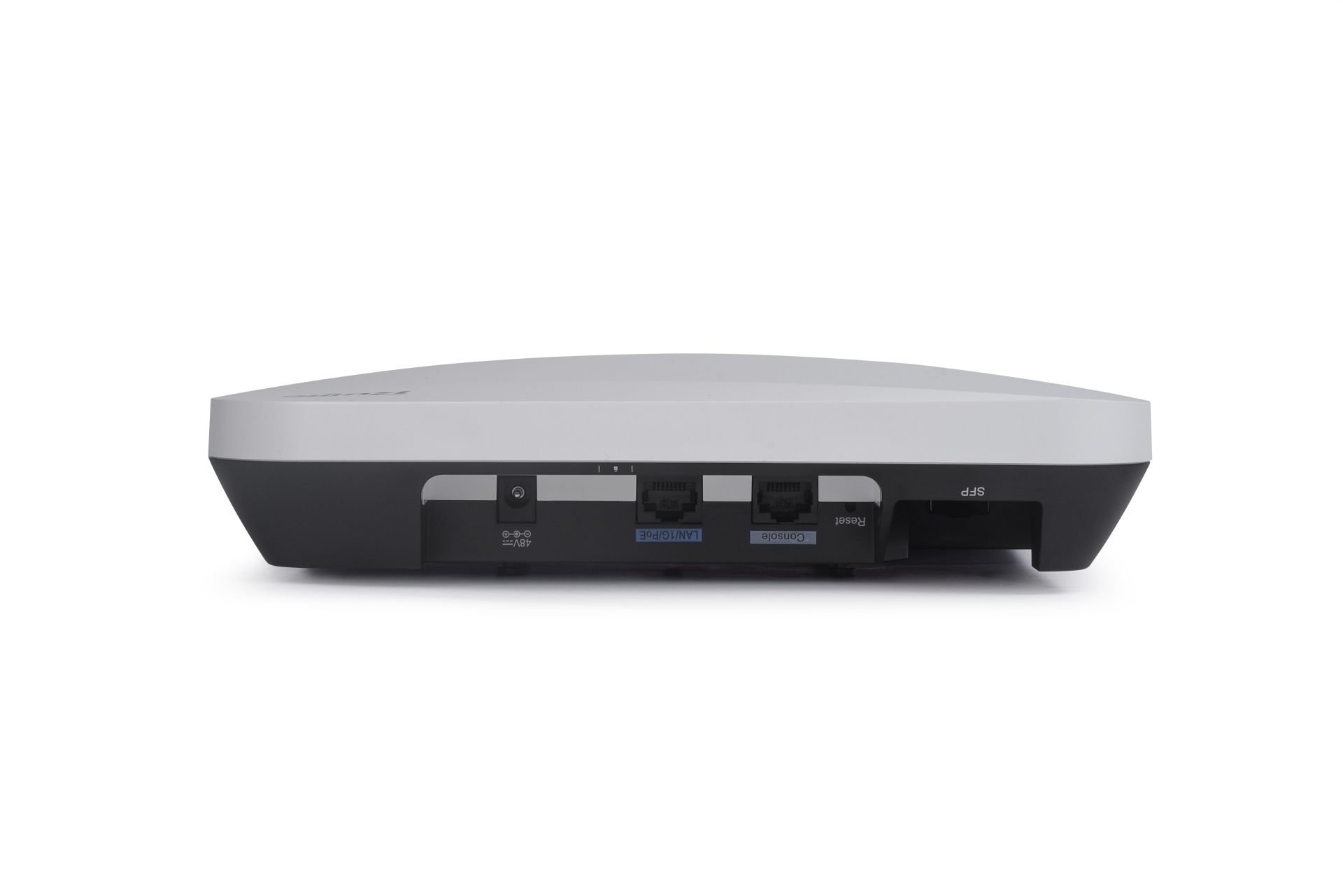

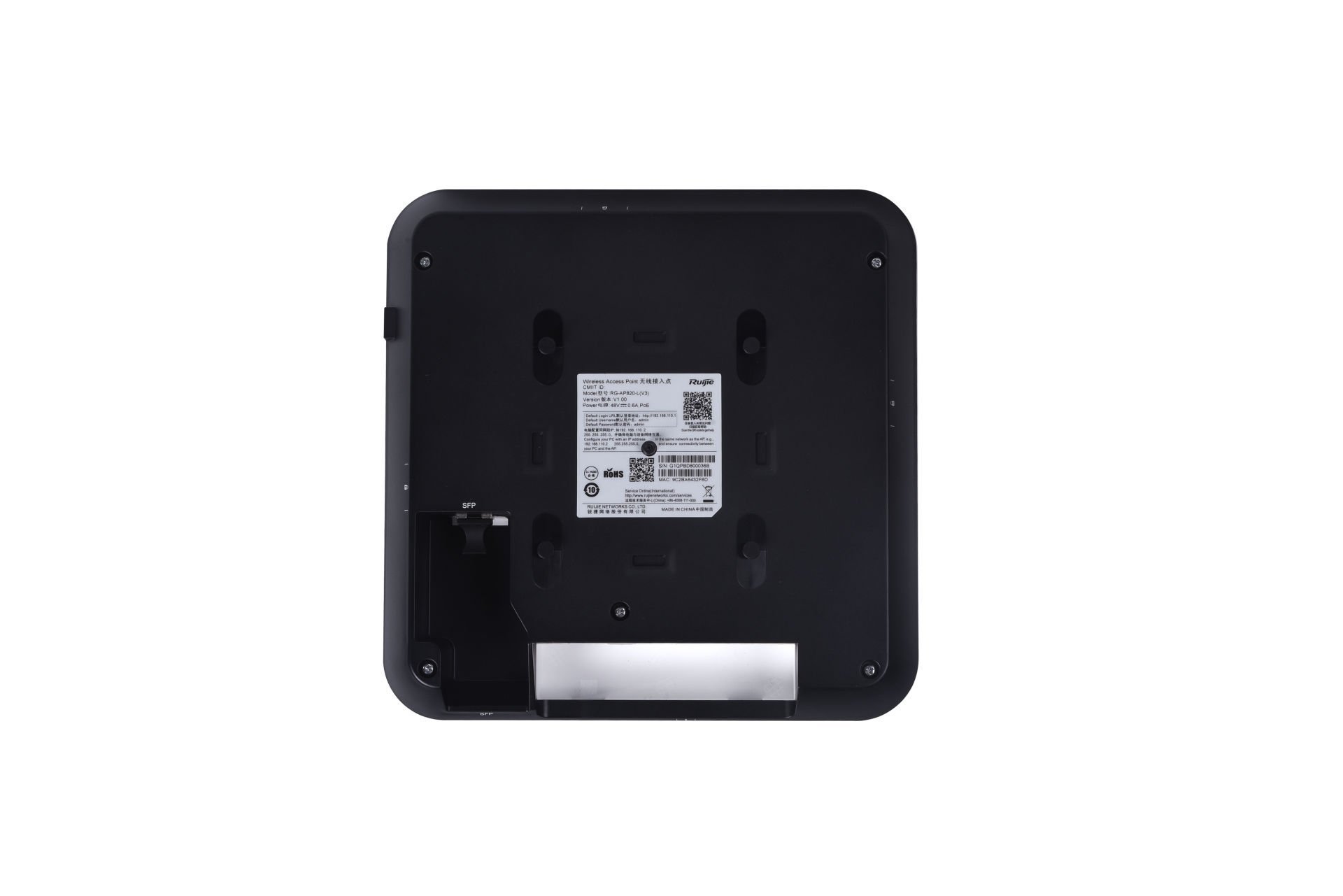

Ports Specifications

RG-AP820-L(V3)

Fixed service port

1 x 10/100/1000BASE-T port

● In compliance with IEEE 802.3af standard (PoE)

● Auto MDI/MDIX crossover

● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher)

● 802.3az EEE

1 x 2.5GE SFP/RJ45 combo port, compatibility with 1GE module, shared with one 10/100/1000BASE-T port

Fixed management port

1 x RJ45 console port (serial console port)

Status LED

1 x multi-color system status LED

Button

1 x Reset button

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Power Supply and Consumption

RG-AP820-L(V3)

Input power supply

The AP supports the following two power supply modes:

● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.

● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).

Note:

● If both DC power and PoE are available, DC power is preferred.

Overall power consumption

Maximum power consumption: 12.95 W

● DC powered: 12.95 W

● PoE powered (802.3af): 12.95 W

● PoE+ powered (802.3at): 12.95 W

● PoE++ powered (802.3bt): 12.95 W

● Idle mode: 6 W

Environment and Reliability

RG-AP820-L(V3)

Temperature

Operating temperature: –10°C to +50°C (14°F to +122°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).

IP rating

IP41

Humidity

Operating humidity: 0% RH to 95% RH (non-condensing)

Storage humidity: 0% RH to 95% RH (non-condensing)

Mean Time Between Failure (MTBF)

200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Regulatory Compliance

RG-AP820-L(V3)

Security regulations

IEC 62368-1

EN 62368-1

EMC regulations

EN 55032

EN 55035

EN IEC 61000-3-2

EN 61000-3-3

EN 301 489-1

EN 301 489-3

EN 301 489-17

Radio frequency regulations

EN 300 328

EN 301 893

EN 300 440

EN IEC 62311

FCC Part 15

Applicable Software Version

RG-AP820-L(V3)

Applicable software version

RGOS11.9(6)W1B4 or higher

WLAN

RG-AP820-L(V3)

Recommended maximum number of active devices per AP

120

Maximum number of associated clients

256

 Note

The number of associated clients varies according to the environment.

Maximum number of BSSIDs

32 (up to 16 BSSIDs per radio)

STA management

SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent client identification technology

Intelligent load balancing based on the STA quantity or traffic

STA limiting

SSID-based STA limiting

Radio-based STA limiting

Bandwidth limiting

STA/SSID/AP-based rate limiting

Wireless roaming

Layer 2 and Layer 3 roaming

Bridge Vlan

Supported

Security

RG-AP820-L(V3)

Authentication and encryption

Remote Authentication Dial-In User Service (RADIUS)

PPSK, UPSK (used with AC) , web, 802.1X, WPA, WPA2, and WPA3 authentication

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE, WPA3-OWE transition mode

Data frame filtering

Allowlist, static blocklist, and dynamic blocklist

ACL

Dynamic ACL assignment

CPP

Supported

NFPP

Supported

Routing and Switching

RG-AP820-L(V3)

IP service

Static IPv4 address

IPv4 DHCP Client

FTP ALG and DNS ALG

Multicast

Multicast-to-unicast conversion

IPv6 basics

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping

IPv6 DHCP Client

IP routing

IPv4/IPv6 static routing

VPN

PPPoE Client

IPsec VPN

LLDP

LLDP

LLDP-MED

LLDP-PoE

Management

RG-AP820-L(V3)

Network management

Fault inspection and alarm

Information statistics and logging

SNMPv1/v2c/v3

NTP Server and NTP Client

Network management platform

Ruijie Cloud

Web-based management (Eweb)

User access management

Console, Telnet, SSH, SNMP and TFTP-based management

Fat/Fit/Cloud mode switchover

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
